6061-T6 H Beam Formwork Aluminum Profiles Inserted With PP Support
Bar Or Wood Supprt Bar
140-H BEAM (Alloy 6061-T6)
X-Sectional Area (As) = 1233 mm2
Yield Strength (Fy) = 241 Mpa
Bending Moment (Allowable) = 4.03 KN-m (S.F. = 2.0)
Shear Strength (Allowable) = 59.45 KN (S.F. = 2.0)
122-H BEAM (Alloy 6061-T6)
X-Sectional Area (As) = 1041.92 mm2
Yield Strength (Fy) = 241 Mpa
Bending Moment (Allowable) = 3.19 KN-m (S.F. = 2.0)
Shear Strength (Allowable) = 50.22 KN (S.F. = 2.0)
SPACING TABULATION (FOR 140-H BEAM)
| SLAB THICKNEWW(mm) | IMPOSED LOAD(mm) | JOIST SPACING(mm) | LEDGER SPACING(mm) | PROPS SPACING(mm) |
| 100 | 9.47 | 610 | 2000 | 1400 |
| 150 | 11.15 | 488 | 2000 | 1350 |
| 180 | 12.16 | 488 | 2000 | 1300 |
| 200 | 12.83 | 488 | 2000 | 1250 |
| 250 | 14.51 | 488 | 2000 | 1200 |
| 280 | 15.52 | 488 | 1800 | 1150 |
| 300 | 16.19 | 406 | 1800 | 1100 |
| 350 | 17.87 | 406 | 1800 | 1000 |
| 400 | 19.55 | 406 | 1600 | 1000 |
Imposed load is 1.4 DL + 1.7 LL, where LL is 50 psf + 25 psf impact
load.
The suggested ledger and props spacing may very depending on the
length of joist and floor height.
Floor height considered in this analysis is 3.6 meters and length
of joist is 3.9 to 4.5 meters.
TECHNICAL DATA
H-BEAM TYPES
140 H Beam with Wood 140 H Beam 122 H Beam
(For Joist) (For Joist & Ledger) (For smaller slab thickness)
MAIN COMPONENTS & ACCESSORIES
| Diagram | Description | Weight | Article No. |
 | 140-H Beam | 3.15 Kg/m | 2010000 |
 | 140-H Beam with wood | 3.16 Kg/m | 2030000 |
 | 122-H Beam | 2.73 Kg/m | 2040000 |
 | A Clamp | 0.11 Kg | 7000000 |
 | U-head | 2.55 Kg | 0500001 |
 | Swivel coupler | 1.20 Kg | 0500002 |
 | Props 3.6m | 17.32 Kg | 3102136 |
 | Tri-pod | 5.32 Kg | 3000018 |
PROJECTS
DESCRIPTION

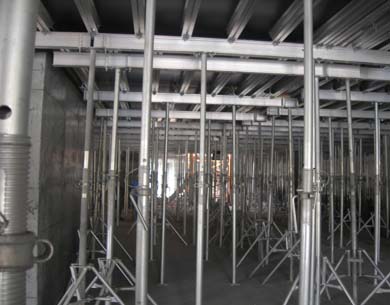

The supporting strut formwork system can provide simple but
effective beams and slabs for conventional casting projects. This
system is the best choice in cases where table systems are not
applicable. It can be easily assembled and stripped to quickly
operate various concrete slab design structures. You can use the
least amount of labor, but you can achieve the best productivity.
Basically, the main Components for this system are the aluminum
140-H Beam which acts as joist and ledger for the plywood decking,
and the Heavy duty adjustable steel props which carry all the
imposed load.
Main Advantages
- Improve productivety
- Environmental protection and energy saving
- Minimize labour
- Reduce construction cycle time
- Materials versatile
| - Less wastage of plywood
- High recovery value for the used materials
- No nails needed
- No small parts loss
- Suitable for any structures
|
System Main Parts
1. Alu 140-H Beam Joist
2. Alu 140-H Beam Ledger
3. Heavy Duty Adjustable Props
4. U-head Assembly
5. Tri-Pod assembly
6. Plywood
